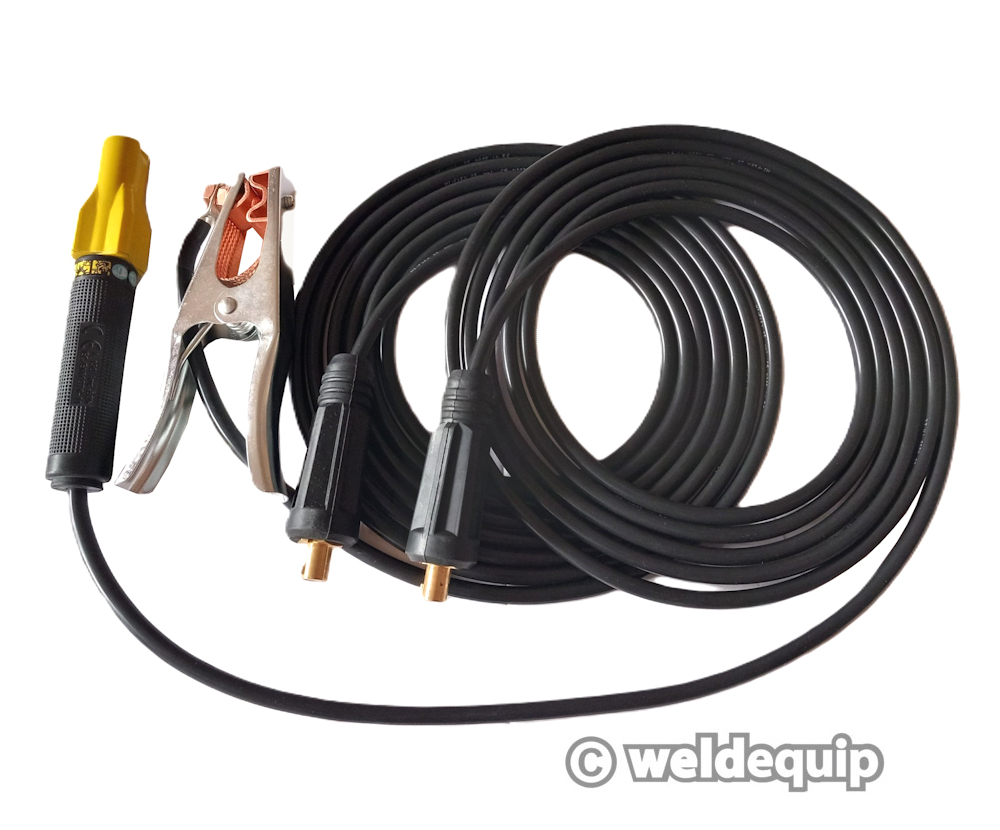

ARC Welding Leads 200 Amp 3 Metres

ARC/MIG/TIG Machines 200 Amps
25mm² HOFR Rubber Insulated Copper Cable with choice of Dinse Type Plugs
High quality Earth Clamp & ESAB Electrode Holder

From £ 21.94 (inc VAT)

Shipping £6.95

(inc VAT to UK Mainland exc Highlands for any number of small parcels)

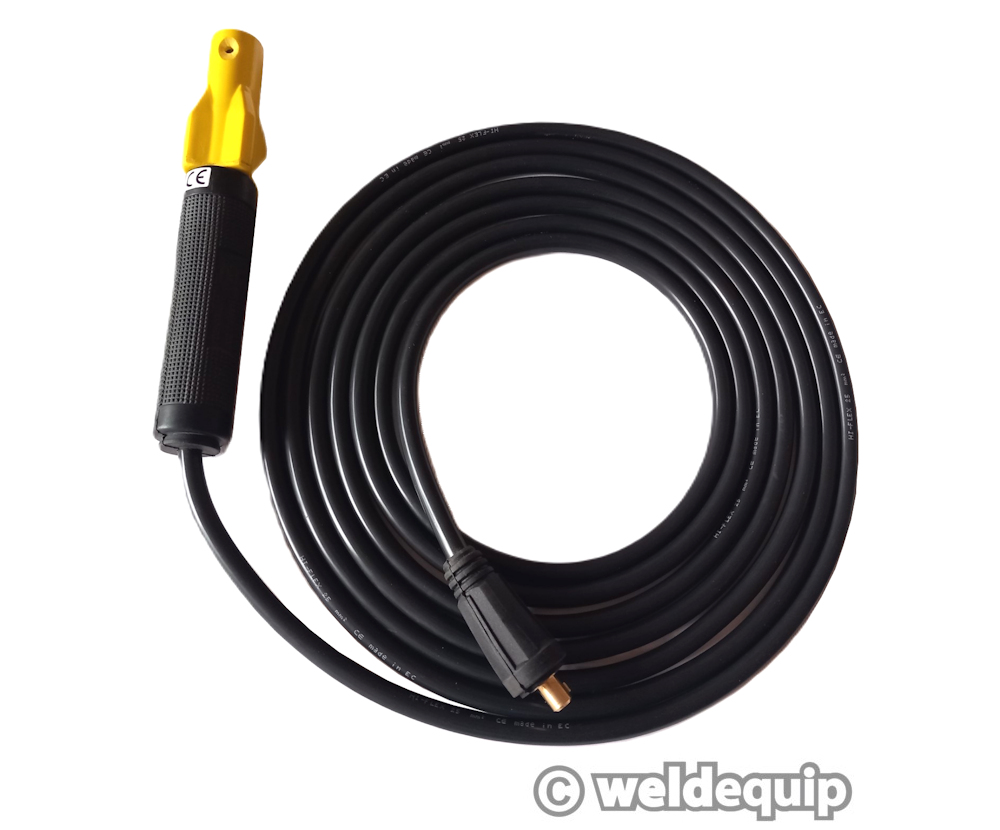

Work Lead 200 Amp 3 Metre Small Plug
£30.29 (inc VAT)

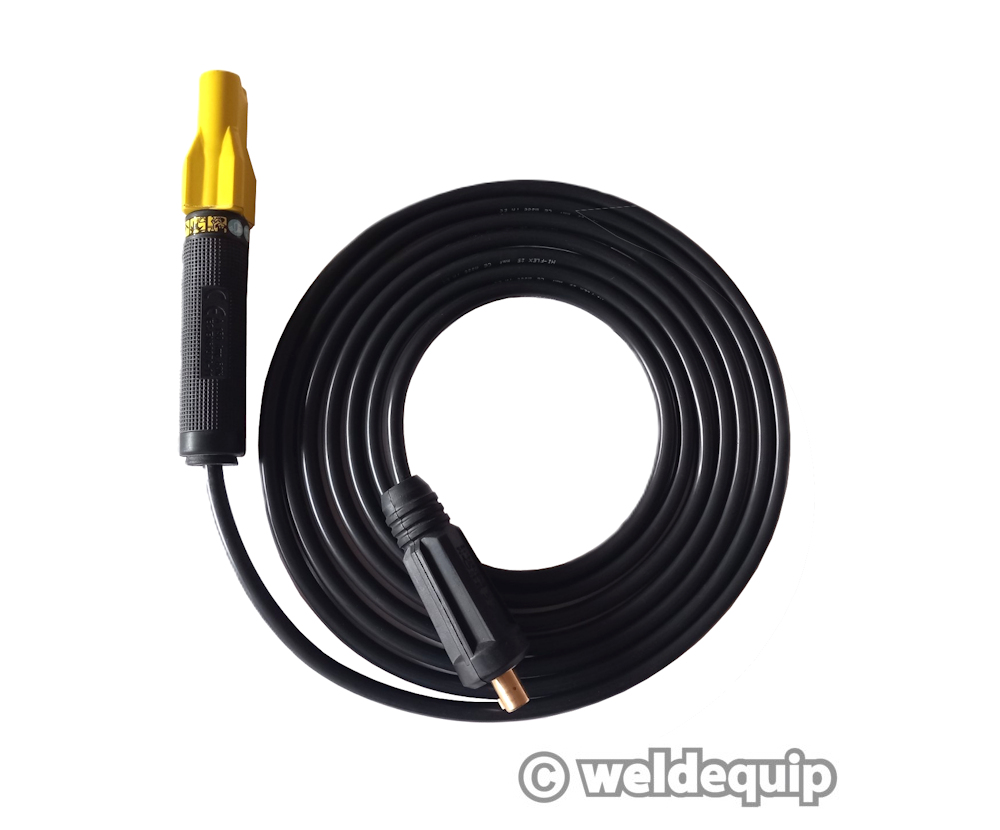

Work Lead 200 Amp 3 Metre Large Plug
£31.72 (inc VAT)

Earth Lead 200 Amp 3 Metre Small Plug
£21.94 (inc VAT)

Earth Lead 200 Amp 3 Metre Large Plug
£23.39 (inc VAT)

This 25mm² copper welding cable has a maximum current capacity of 300 Amps (@ 35% duty cycle) and carries 180 Amps @ 100% duty, so is perfect for reliable use on Arc Welder/Inverter machines around 200 Amp output.

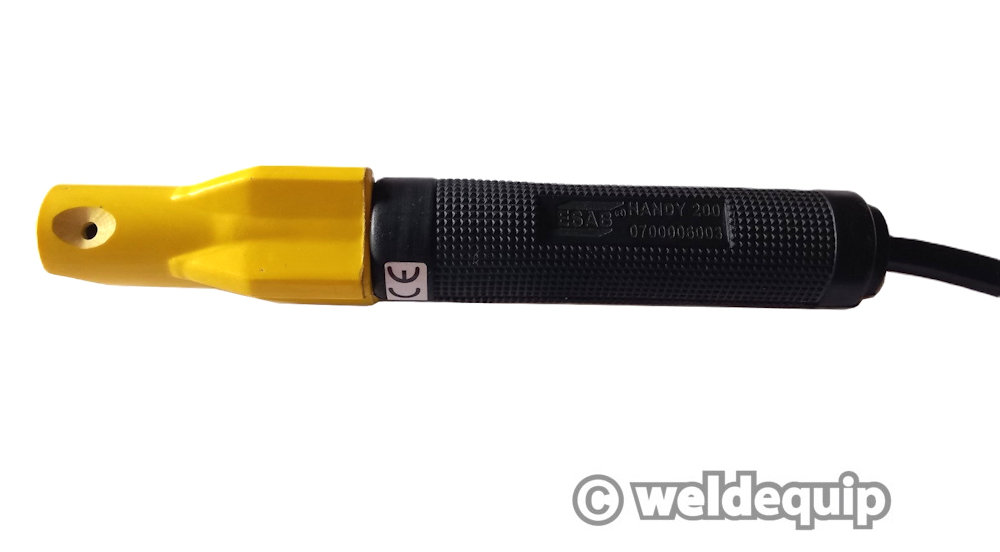

Assembled from best quality Italian HO1N2-D rubber insulated cable, the bullet proof ESAB Handy 200 Electrode Holder and American style Earth Clamp - rated up to 400 Amps - with properly crimped & insulated terminals these are leads built to last!

Plug Size

SMALL Plug
Usually referred to as 10-25mm Dinse with approximately 9mm diameter brass pin

LARGE Plug
Usually referred to as 35-50mm Dinse with approximately 13mm diameter brass pin

Cable Standard

BS EN50525-2-81
HO1N2 - D
