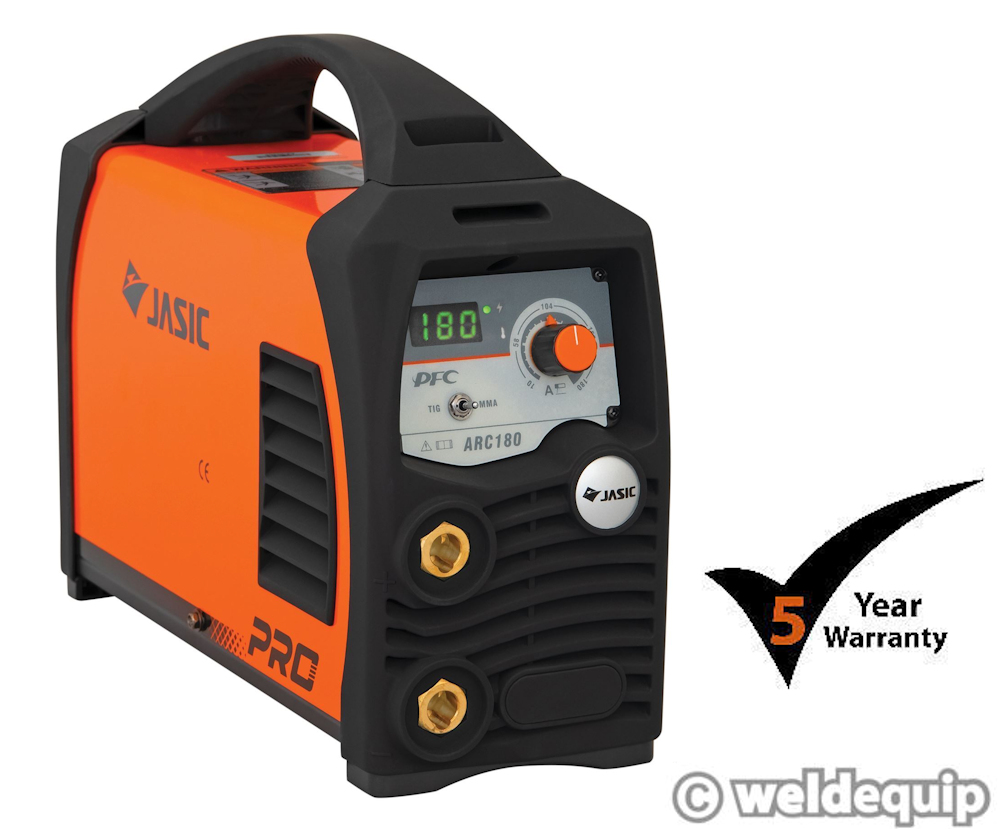

Jasic PRO ARC 180 PFC Inverter Arc Welder

10 - 180 Amp DC Inverter MMA Welder
Dual Voltage 230v/110v with Auto-Select
PFC - Power Factor Correction
Lift-Arc TIG Facility
Complete with lead set
5 Year Warranty

£ 320 (inc VAT)

Shipping £7.95

(inc VAT to UK Mainland exc Highlands for any number of items)

Jasic PRO ARC 180 PFC Inverter Package
£320 (inc VAT)

Jasic PRO ARC 180 Inverter TIG Kit
£87.96 (inc VAT)
Includes TIG Torch Assembly & Industrial Argon Gas Regulator

Jasic Site Bag
£45 (inc VAT)
Tough Nylon holdall to protect machine & accessories

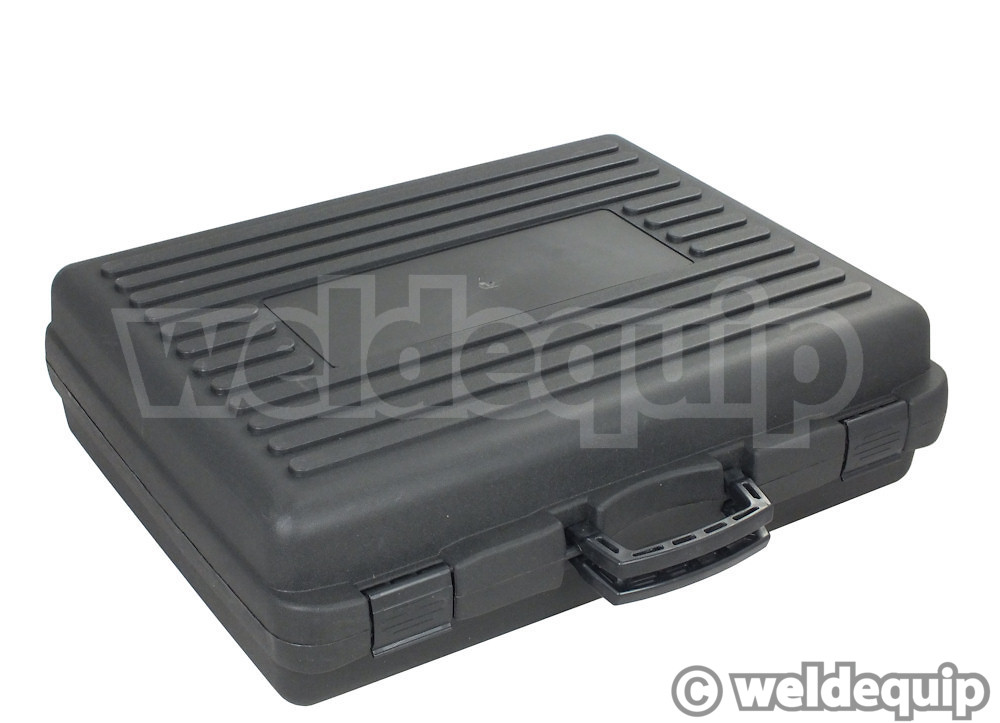

Jasic Site Case
£39 (inc VAT)
ABS Site Case for machine & leads

Machine Shoulder Strap
£4.80 (inc VAT)

A very compact & portable (4.7kg), powerful Inverter MMA & DC Lift -TIG set with Dual Voltage input, making it ideal for shop and site use. Punches out 180 Amps from 230v mains supplies and 140 Amps from 110v site supplies, so will run up to 4.0mm rods with ease.

Duty Cycles are measured at a full 40C. It can be run from Generators and used for Lift-Start TIG with the addition of the optional TIG Kit & Argon gas supply.

Key Features

40 Khz IGBT Inverter technology for greatly reduced size, weight & efficiency
Hot-Start, Anti-Stick and self adaptive Arc-Force for reliable, stable arc even with long extension leads
VRD and auto-compensation for voltage fluctuation
Advanced single PCB construction for easy testing & servicing
Industry leading 5 Year Warranty Cover & support from Wilkinson Star

Supplied With

3 metre lead set
5 year warranty cover

Technical Specification

Supply Voltage: 230v or 115v (auto-switching)
Output Range: 10A – 180A on 230v, 10A – 140A on 115v
Duty Cycle @ 40C: 30% @ 180 Amps from 230v, 35% @ 140 Amps from 110v
Dimensions: 313mmL x 130mm W x 250mm H
Weight (machine only): 4.7kg
Protection/Insulation Class: IP21/F
Standards of Conformance : ALL
Warranty: 5 Years
