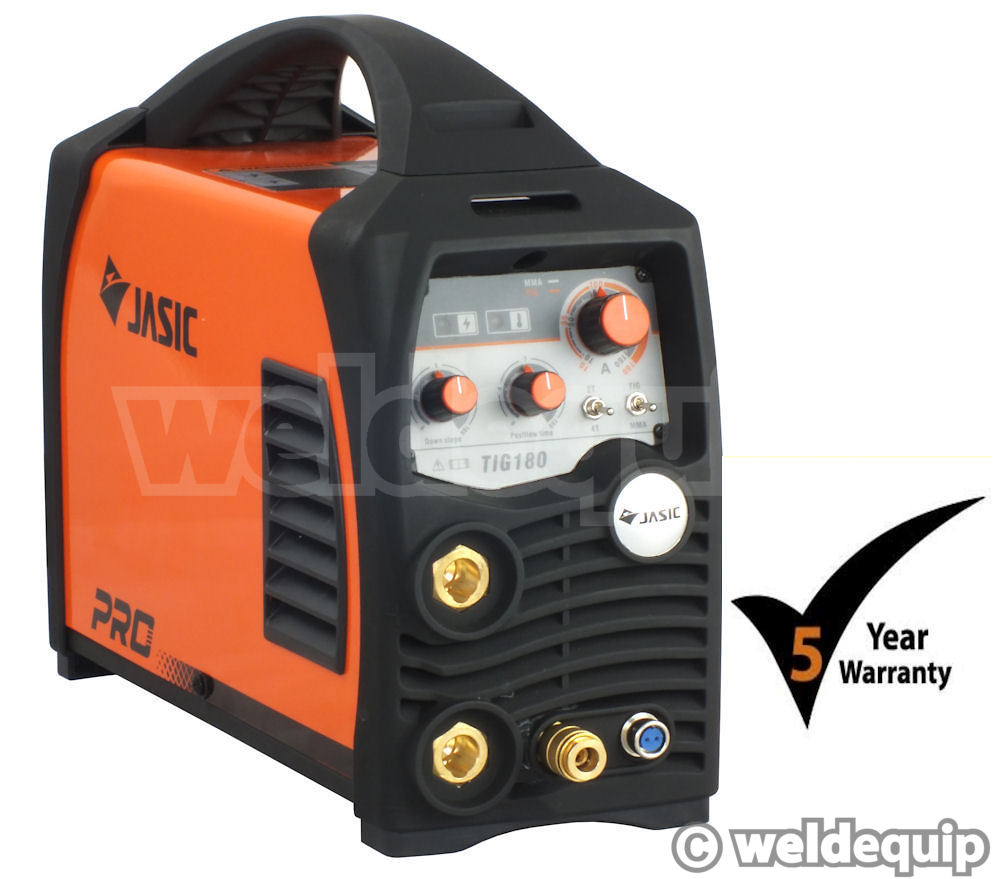

Jasic PRO TIG 180 DC Dual Voltage Inverter TIG Welder

• 10 -180 Amp DC Inverter TIG/MMA Welder
• Dual Voltage 230v/110v with Auto-Switching
• High Frequency (HF) Arc Ignition
• Package including TIG Torch & Gas Regulator
• Leading Technology, Leading Supplier, 5 Year Warranty

£ 630 (inc VAT)

Shipping £7.95

(inc VAT to UK Mainland exc Highlands for any number of items)

Jasic PRO TIG 180 DC Dual Voltage Inverter TIG Package
£630 (inc VAT)

Qty

MMA (Arc) Welding Lead
£31.70 (inc VAT)
3M Hi-Flex Cable, ESAB 200 Rod Holder, 35-50mm Cable Plug

Qty

SWP Auto-Darkening Headshield Offer
£31.50 (inc VAT)
50% OFF only valid when purchased together with this machine package

Qty

Jasic Site Bag
£45 (inc VAT)
Tough Nylon holdall to protect machine & accessories

Qty

Machine Shoulder Strap
£4.80 (inc VAT)

Qty

A new range of Inverter Welding Systems from Wilkinson Star Ltd. Exceptionally keenly priced - without compromising on component specification - all feature advanced design, excellent build quality, and professional level features & performance. Fully supported throughout the UK & Ireland with an industry beating 5 Year Warranty.

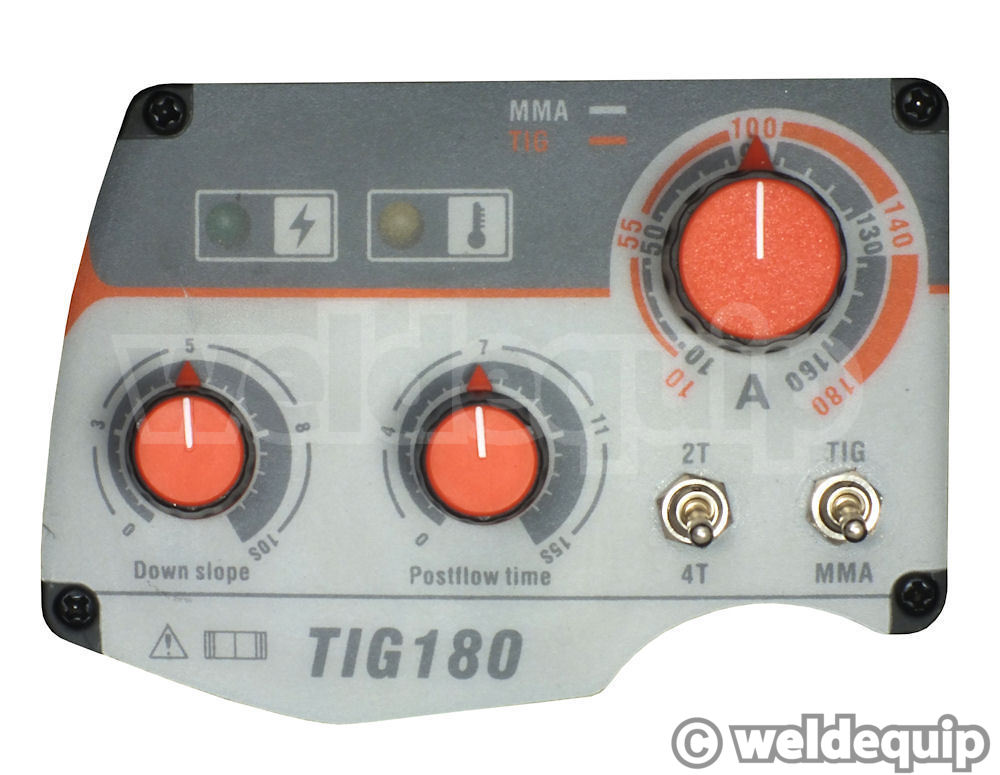

Dual Voltage power input with auto-switching between 230v mains supplies or 110v site supplies make this a versatile machine for shop or mobile use. 180 Amp DC TIG, 160 Amp MMA from mains supplies, or 120 Amp TIG & 100 Amp MMA from site supplies. Under 6Kg weight, ultra compact & portable. TIG features include HF start, adjustable Down Slope control 0-10s (Up Slope pre-set), adjustable Post Gas control 0-15s, 2T & 4T torch control; all the essentials on a very clear & simple control panel.

Key Features

• Latest 40 Khz IGBT Inverter technology for greatly reduced size, weight & efficiency
• Adaptive Arc-Force for a reliable, stable arc when using extension leads
• VRD and auto-compensation for voltage fluctuation
• Generator friendly
• Advanced single PCB construction for easy testing & servicing
• Air channel design for maximum reliability
• Industry leading 5 Year Warranty Cover & support from Wilkinson Star

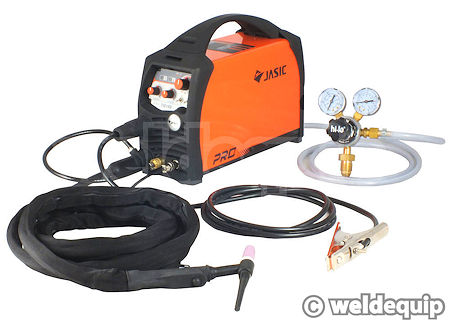

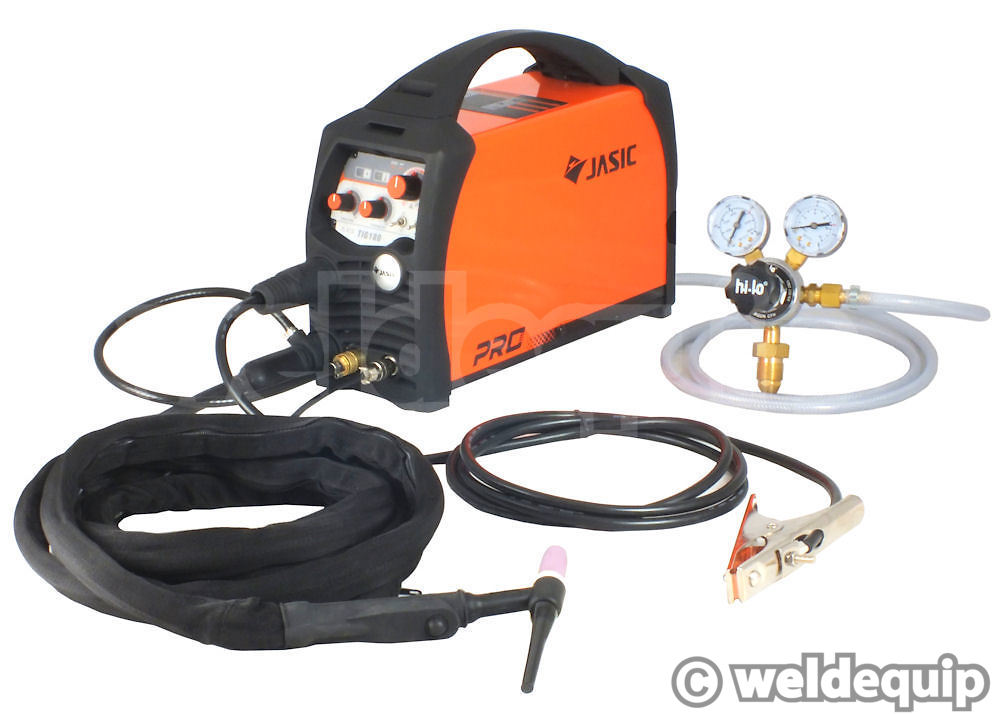

Supplied With

• 4 Metre WP17 TIG Torch Assembly fitted with power cable adaptor, quick fit gas connection, zipper cover & front-end parts
• 3 Metre Earth Lead fitted with 200 amp earth clamp, 35-50mm dinse plug
• Quality Argon Gas Regulator 2 gauge
• 3 Metre Argon Gas Hose with quick release machine coupling
• 5 year warranty cover

Technical Specification

• Supply Voltage: 230v or 115v with Smart-Switching
• Input Power (kVA): TIG 5.2 MMA 7.1
• Output Range from 230v Supplies: TIG 10A – 180A MMA 10A – 160A
• Output Range from 115v Supplies: TIG 10A – 120A MMA 10A – 100A
• 230v Duty Cycle @ 40C: 35% @ 180 Amps
• 115v Duty Cycle @ 40C: 35% @ 120 Amps
• Dimensions: 365mmL x 135mm W x 277mm H
• Weight (machine only): 5.94kg
• Protection/Insulation Class: IP21S/F
• Standards of Conformance : ALL
• Warranty: 5 Years
