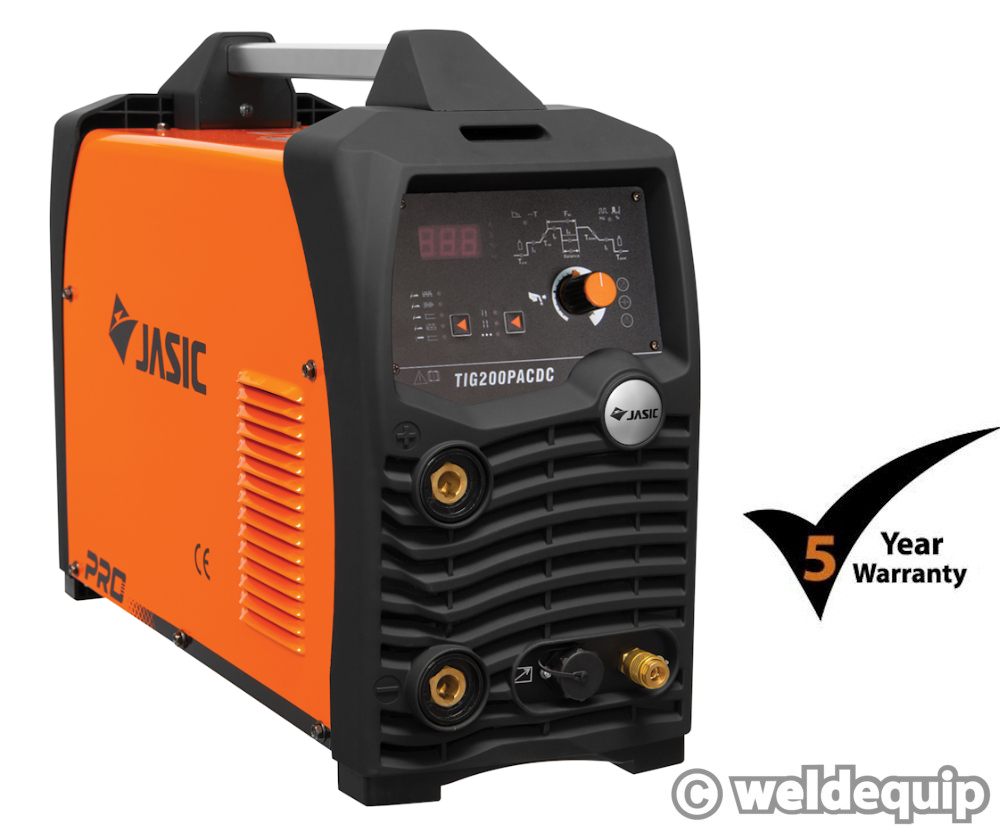

Jasic PRO TIG 202P AC/DC Digital Inverter TIG Welder
- 200 Amp AC/DC TIG Inverter 230v Single Phase
- Fully loaded specification with Digital Control
- Package including TIG Torch & Gas Regulator
- Water Cooled option
- Market leading 5 Year Parts & Labour Warranty
- Monthly offers available - email for details
£1426 (inc VAT)
£2603 (inc VAT)
£235 (inc VAT)
£22.80 (inc VAT)
3M Hi-Flex Cable, ESAB 200 Rod Holder, 35-50mm Cable Plug
Feature packed AC/DC machine suitable for welding most materials including Aluminium & Alloys up to around 6mm thickness. Digitally controlled for superior performance over standard analogue type models.
The control panel is simply laid out with membrane keys for selecting settings and single dial control for adjusting parameters. 5 programme memory storage allows settings to be instantly recalled for repeat jobs, and there are no less than 20 different torch trigger configurations! These include your standard 2T & 4T, Spot-Welding and more complex waveforms such as Dual-Pulse and Variable Polarity AC Pulse.
Fully supported throughout the UK & Ireland with Wilkinson Star’s
industry leading 5 year warranty.
Key Features
- Digitally controlled for superior arc performance
- AC Square Wave TIG, AC Pulsed TIG, DC TIG, DC Pulsed TIG, AC & DC MMA (Arc)
- Adjustable AC Frequency Control
- Adjustable AC Balance Control
- Full Pulse settings on AC & DC up to 200Hz
- 5 programme memory storage for recall of individual job settings
- Easy to use control panel with digital display
- Industry leading 5 Year Warranty Cover & support from Wilkinson Star
Supplied With
- 4 Metre WP26 TIG Torch Assembly fitted with power cable adaptor, quick fit gas connection, zipper cover & front-end parts.
- 3 Metre Earth Lead fitted with 200 amp earth clamp, 35-50mm dinse plug
- Quality Argon Gas Regulator 2 gauge
- 3 Metre Argon Gas Hose with quick release machine coupling
- 5 year warranty cover

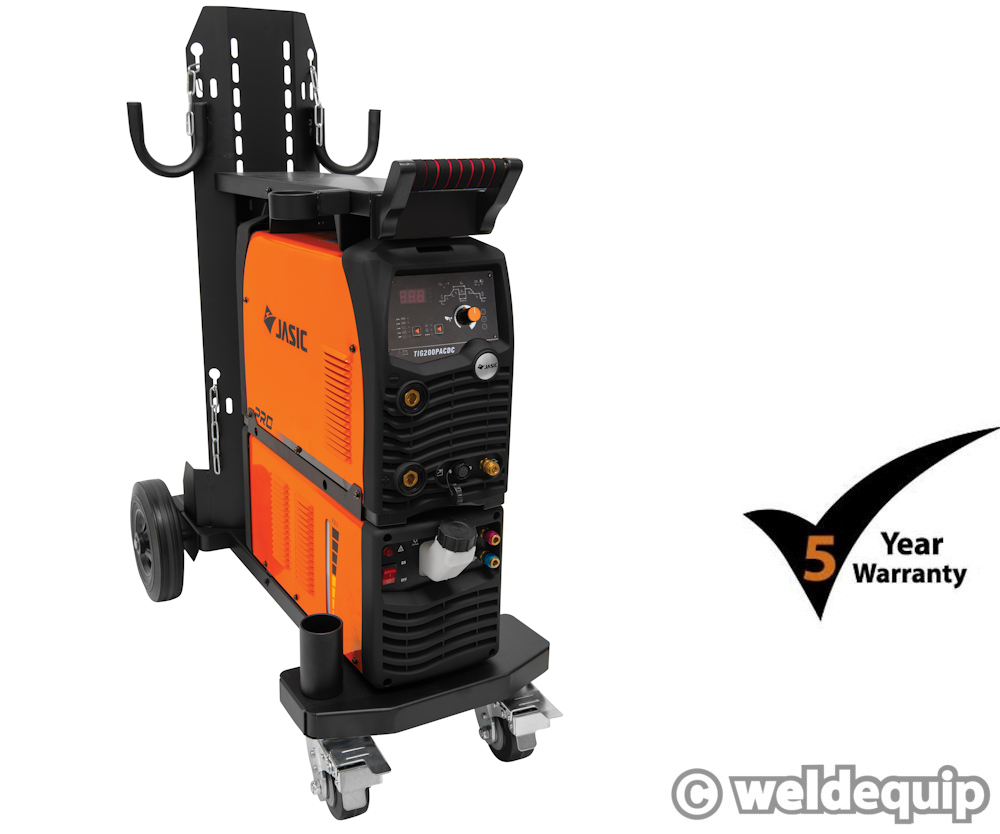

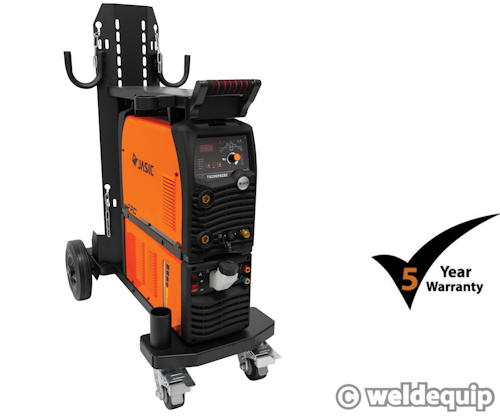

Water Cooled Option
- 4 Metre WP20 Water Cooled Torch
- Modular Water Cooling Unit
- Trolley
Technical Specification
- Supply Voltage: 230V
- Input Fuse: 20A/30A @ Max
- Output Range: 10A – 200A TIG, 10A – 160A on MMA
- Duty Cycle @ 40C:
TIG 25% @ 200 Amps, 60% @ 160 Amps, 100% @ 120 Amps
MMA 30% @ 160 Amps, 60% @ 150 Amps, 100% @ 120 Amps - Dimensions: 570mm L x 350mm W x 420mm H
- Weight Air Cooled: 15kg
- Weight Water Cooled: 70kg
- Protection/Insulation Class: IP21S/B
- Standards of Conformance : ALL
- Warranty: 5 Years
